Azure Network Security groups

  • Azure Network Security Groups (NSG) can be used to filter network traffic to azure resources
  • NSG contains security rules that allow or deny in bound traffic and outbound traffic

  • Every NSG has security rules. Each Security rule has the following properties
    • Name
    • Priority: This is number b/w 100 and 4096
    • Source: Individual IP or Any or cidr range of the source
    • Destination: Individual IP or Any or cidr range of the destination
    • Protocol: TCP, UDP, ICMP or Any
    • Direction: Inbound or outbound
    • Port Range: Which ports you want to apply the traffic to
    • Action: allow or deny
  • Lets create a network security group in Azure
    • Create a resource group
    • Create a nsg
  • Every NSG has security rules. Each Security rule has the following properties
    • Name
    • Priority: This is number b/w 100 and 4096
    • Source: Individual IP or Any or cidr range of the source
    • Destination: Individual IP or Any or cidr range of the destination
    • Protocol: TCP, UDP, ICMP or Any
    • Direction: Inbound or outbound
    • Port Range: Which ports you want to apply the traffic to
    • Action: allow or deny
  • Lets create a network security group in Azure
    • Create a resource group
    • Create a nsg







  • The NSG which we create already has some security rules which are referred as default security rules
  • These default security rules
    • allows all of the traffic outbound (from Azure Resource to anywhere)
    • allows all of the traffic within virtual network inbound (b/w azure resources in a vnet)
    • allows all communication from AzureLoadbalancer to Azure resource in a vnet
LAB Practice: Create a network security group which
  • allows ping and http (tcp port 80 ) communication from any where
  • allow tcp port 3306 from 100.120.200.220
  • denies tcp port 3306 from anywhere


Next steps?
  • Whey space in numbering in rules
  • nsg can be applied to subnets as well
  • consider one enterprise architecture and design nsg
  • Why to leave numbers b/w security rules
  • Security rules in nsg have priority from 100 to 4096.
  • Generally its a good practice to leave some numbers b/w security rules. The reason for that is to accomodate changes in the future
  • Consider this nsg


  • NSG can be applied to the subnet as well.
  • Lets try to create the network, subnets and NSG for the architecture shown below




Now lets try to create nsg rule for subnet Application Gateway
  • So that only port 443 and 80 is allowed from internet

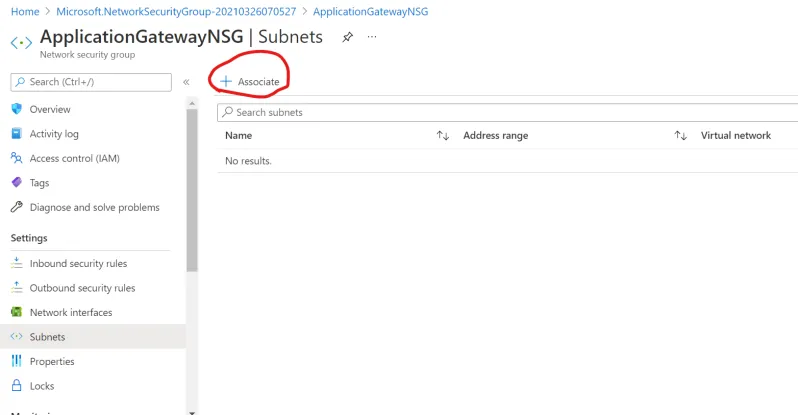

Now lets apply this NSG to Application Gateway Subnet










Now lets try to create a NSG for Management subnet which
  • allows 3389 port from anywhere (ideally this would be your organization n/w range)




  • If there is contradicting rule one says allow and the other says deny in nsg associated with nic and nsg associated with subnet, deny always wins
  • Lets look at this scenario





  • Create a nsg rule for subnet3
    • allow all connections from subnet1 cidr range
    • deny all connections from subnet2 cidr range
