vNET Peering



VNet Peering

• Scenario

• VNet peering enable us to connect seamlesly Azure Virtual Networks as long as ip address ranges don’t collide
• Lets Create a Network A
  • address range: 10.10.0.0/16
  • subnets:
    • web: 10.10.0.0/24
    • app: 10.10.1.0/24
    • db: 10.10.2.0/24
  • location: EastUS
• Lets Create a Network B
• address range: 10.100.0.0/16
• subnets
  • notification: 10.100.0.0/16
• location: WestUS
•

Now lets create two vms one in web subnet of network A and notification subnet of network B

Vnet peering enables private connectivity. i.e. machine in network A can reach machine in network B using private ip

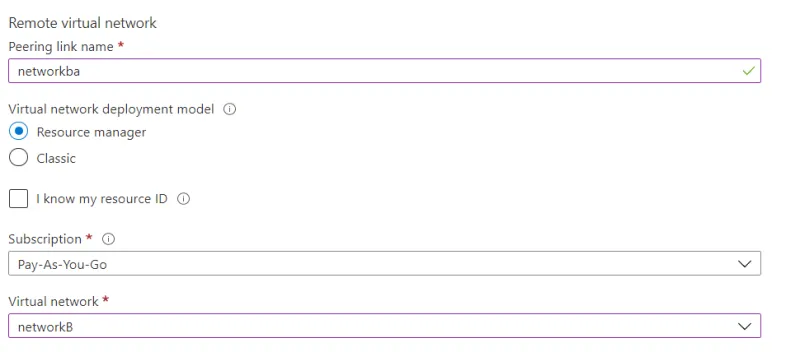

Navigate to vnet => network A and in settings blade select peering

VNET Peering can be done b/w

• two vnets from same subscription in same region
• two vnets from same subscription in different regions
• two vnets from different subscription in same/
• different region
